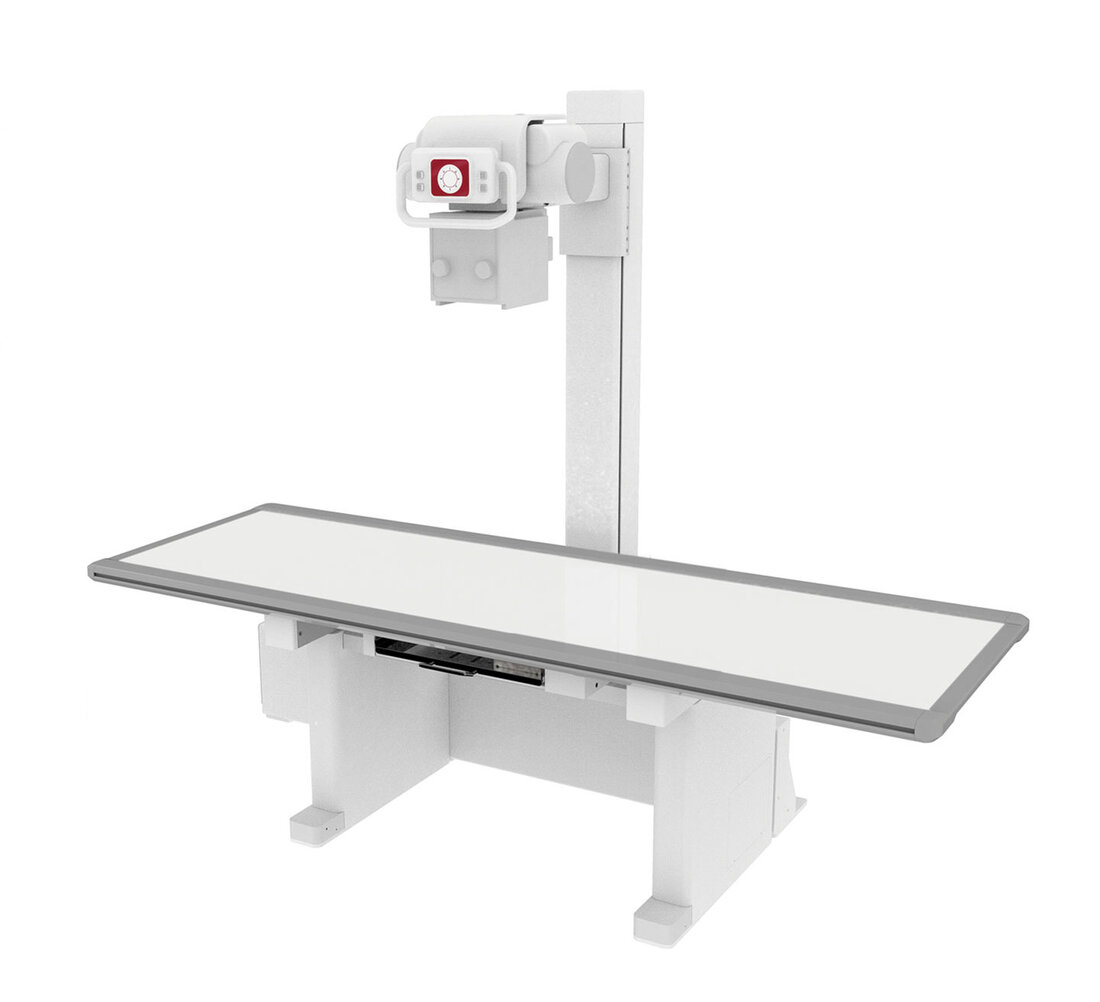

X-DRS Floor Basic
For the small animal veterinary clinic where radiological imaging is fundamentally crucial. The X-DRS Floor Basic as best cost-performance system in its class!
The main features of the system are its +50KW high performance, its extra-large X-ray tabletop with 4–6-dimensional BT movement flexibility and optional bucky wall stand.
Its X-ray tube and the detector tray on the X-ray table are mechanically coupled, the two always align accurately with each other.
The X-DRS Floor Basic comes with its high +50KW generator power, bringing significant reductions in the X-ray exposure times, eliminating patient and organ movement with increasing image sharpness for your delicate cardiovascular and thoracic X-ray imaging.
The X-DRS Floor Basic easily performs any high-volume X-raying required. Its high thermal capacity ensures consistently reliable performance when it matters.
- The X-DRS Floor Basics workstation is an independent unit, allowing adaptable location, both in the X-ray room and in a separate control room.
- Optional: the additional wall stand allows for easy imaging animals in standing position, the X-ray tube easily swiveled into position towards its wall bucky stand.
![[Translate to English:] X-DRS Floor Basic ist die ideale Kleintier-Röntgenanlage](/fileadmin/_processed_/c/e/csm_x-drs-floor-basic-roentgenanlage-kleintierklinik-examion_1aa66fc47c.jpg "[Translate to English:] X-DRS Floor Basic ist die ideale Kleintier-Röntgenanlage")
Powered by X-AQS EXAMION X-ray software
The integrated X-AQS X-ray software offers animal-specific organ programs, enabling optimal radiological workflow.
Technical Specifications
| Longitudinal travel (tube stand) | 127.6 cm (50.3") Manual movement, electromagnetic brakes |
| Vertical travel (focal spot) | 136.5 cm (53.8") Manuel movement, electromagnetic brakes |

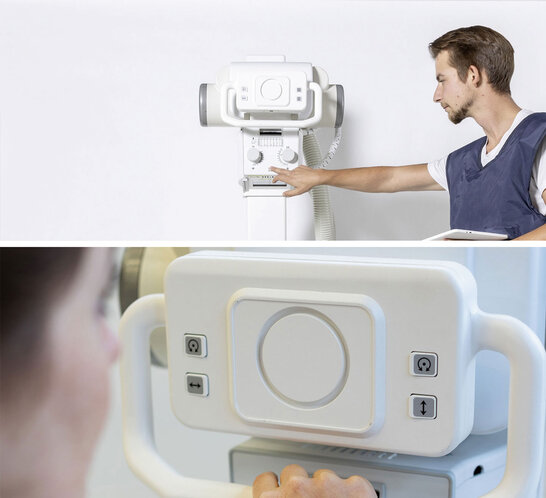

| Tube rotation | ±135° Manual rotation, electromagnetic brakes |
| Tracking | Table: Mechanical clutch between tube stand and bucky of the table |
| Vertical travel (bucky) | Min.: 40 cm (15.7") Max.: 176.5 cm (69.5") Manual movement, electromagnetic brakes |
| Bucky | For cassettes or mobile flat detectors |
| Tabletop dimensions | 228 cm x 80.6 cm (89.8" x 31.8") |
| Tabletop travel range | Longitudinal: 50 cm ± 1 cm (19.7" ± 0.4") Transverse: 8.5 cm ± 1 cm (3.4" ± 0.4") |
| Detector travel range | 33.4 cm ± 1 cm (13.2" ± 0.4") |
| Max. patient weight | 250 kg (551.2 lbs) |
| Table top brakes | Electromagnetic brakes released via foot-controlled light barrier |
| Bucky | For cassettes or mobile fl at detectors |
| Generator | CPI CMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, AEC, hand switch, 3 phases / N / PE, 400 V, incl. console Other generators on request |
| Tube | Varex RAD-14, focal spots 0.6 / 1.2 mm, 300 kHu, max. 150 kV, incl. high voltage cable, weight 17.4 kg (38.4 lbs) Optional: RAD 21, RAD 60 |
| Collimator | Manually turnable, LED lamp, integrated timer, laser alignment |
| AEC | 3-field measuring chamber with cable |
| DFP (optional) | DAP measuring device or DAP calculation, automatic integration into X-AQS X-ray journal |
| Warranty | 5 years warranty on detectors 1 year warranty on all other components Extended warranty on request |
| Zertifizierung | CE 2460 |
| Selectable Detectors | X-DR L WiFi | X-DR L WiFi Premium | X-DR XL WiFi | X-DR XL WiFi Premium |
| Pixel Size | 150 μm | 100 μm | 139 μm | 100 μm |
| Pixel Matrix | 2.304 px x 2.800 px | 3.500 px x 4.300 px | 3.072 px x 3.072 px | 4.267 px x 4.276 px |
| Weight | 3,4 kg | 2,8 kg | 4,6 kg | 3,4 kg |
| Protection Class | IPX1 | IP56 | IPX1 | IP56 |
| Uniform Load | 150 kg | 300 kg | 100 kg | 300 kg |
| Local Load | 100 kg (4 cm diameter) | 150 kg (4 cm diameter) | 100 kg (4 cm diameter) | 150 kg (4 cm diameter) |
| Configurations | EXAMION X-AQS DICOM Modality SCU • DICOM Worklist SCU • DICOM Store SCU |
| EXAMION X-AQS PACS • Integrated Mini-PACS |
Questions and Answers
As a PACS manufacturer, we are specialized in radiological image management. Based on our long-standing experience also in the X-ray sector, we act as a one-stop shop: from consulting to planning and implementation of the entire X-ray room and subsequent image distribution. Thus, our representatives can provide in-depth information about our digital X-ray systems and give you appropriate retrofitting advice, but they can also help you quickly and efficiently in case of a malfunction.
It depends on the individual case. Depending on the X-ray system, we are able to carry out maintenance and repairs or enable further use of X-ray equipment. This must be evaluated individually; our representatives will be happy to advise you! Send us an email at vertrieb@examion.com or contact your sales representative directly.
No, there is no obligation to conclude a software service contract when purchasing our X-AQS X-ray software. However, for a software medical device, this is specifically recommended. Our software is characterized by stable performance, but it is not an isolated system and therefore subject to changes in the operating system (e.g., Windows), device drivers, the network and, of course, users. A software maintenance contract ensures that you and your staff can always rely on support for questions and problems, without having to worry about a bill after every phone call.
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
