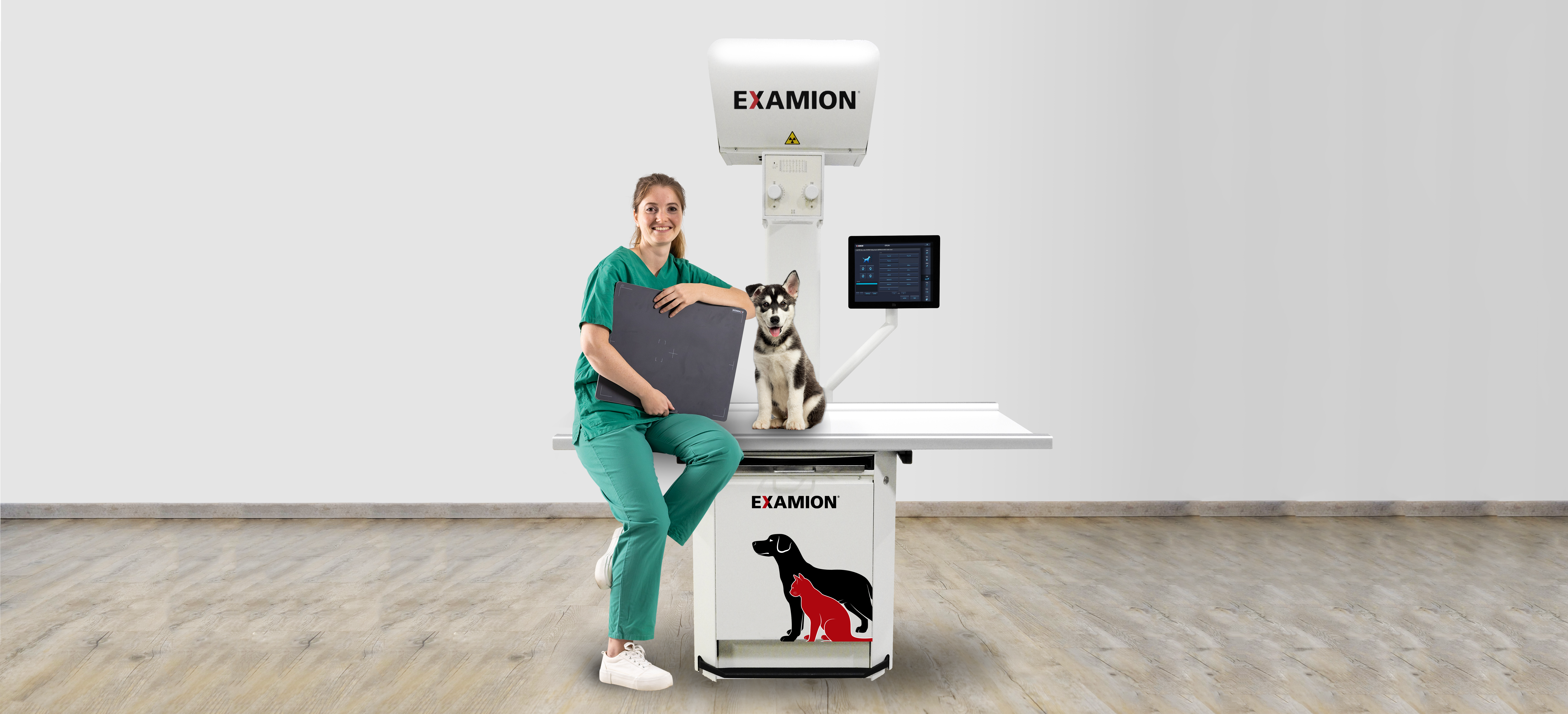

X-DRS VET Expert
The new comprehensive X-ray system X-DRS VET Expert is ideally suited for your small animal practice or clinic. It generates high-quality digital x-ray images while providing a high level of comfort for users. The X-ray system integrates all the components necessary to produce X-ray images into one compact unit.
- User-controlled X-ray process via the all-in-one PC without impeding the ability to focus on the animal.
- Cabling is entirely confined to the system interior, providing maximum protection while creating a high-quality appearance.
- The EXAMION detectorX-DR XLgenerates with our user-friendly X-ray software X-AQS brilliant X-ray images for clear-cut diagnosis.
- The X-AI Integrator offers the option of creating an interface to the renowned PicoxIA software. This offers you diagnostic support through artificial intelligence.
We are confident of the quality of our products. Therefore we offer 5-year warranty!
Technical Specifications
| Power | 30 kW |
| Anode | Rotating, max. current 425 mA |
| Focus | 0,6/1,3 mm |
| Power supply | 230 V; 16 A (3 kW) |
| Ma-range in steps of 25 | 25 bis 300 |
| KV range in steps of 1KV | 40 bis 120 |
| Collimator | R104 |
| Dimensions with table top (WxHxD) | 160 x 200 x 93 cm |
| Dimensions with stand (WxHxD) | 230 x 200 x 135,3 cm |
| Weight of the entire system | 250 kg |
| Guaranty | 5 years |
| Detector choice | X-DR XL (43 x 43 cm / 17 x 17 In) |
| Pixel pitch | 139 μm |
| Pixel matrix | 3.072 px x 3.072 px |
| Weight | 4,0 kg |
| Safety class | IPX1 |
| Surface load | 150 kg |
| Point load | 100 kg bei Ø 40 mm |
| Warranty | 5 years; Extended warranty on request |
| X-AQS PACS VET | X-AQS PACS Vet X-AQS Module Archiving on CD/DVD X-AQS Module Data Compression includes for client X-AQS Module Patient CD/DVD X-AQS Module Import Bitmap Images X-AQS Module Import DICOM Images X-AQS Module Import AQS Images X-AQS Module Image Export X-AQS Module Mail Export |
| X-AQS Client | 1 workstation (expandable up to 4 workstations) X-AQS Viewer X-AQS Diagnosis License per Client, floating license for X-AQS Software |
Questions and Answers
EXAMION will continue to stay a strong, reliable partner for the customers, even beyond the purchase process. We perform service, repair and maintenance of the X-ray system and carry out all required tests and measurements competently. Furthermore, we offer attractive financing models. Our sales representatives will be happy to advise you personally and according to your needs.
This depends on the range of applications in the practice. The X-DR L WiFi (35 cm x 43 cm (14" x 17")) basically covers all animal shots due to its size. However, especially for large animals such as horses, an X-DR M WiFi (25 cm x 30 cm (10" x 12")) is more suitable since it can be positioned extremely flexibly on the animal.
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted. In accordance with the EXAMION warranty conditions.
