X-DRS Floor Basic

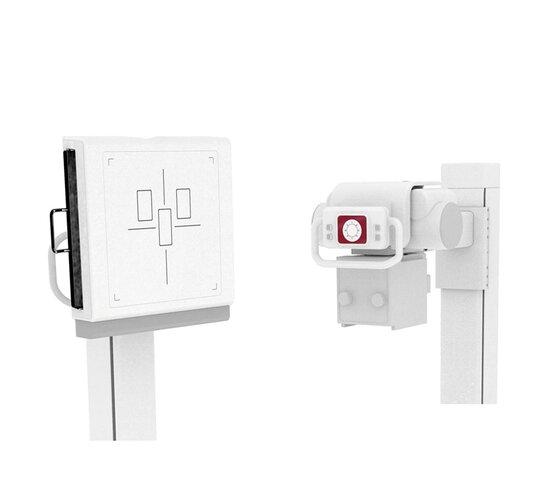

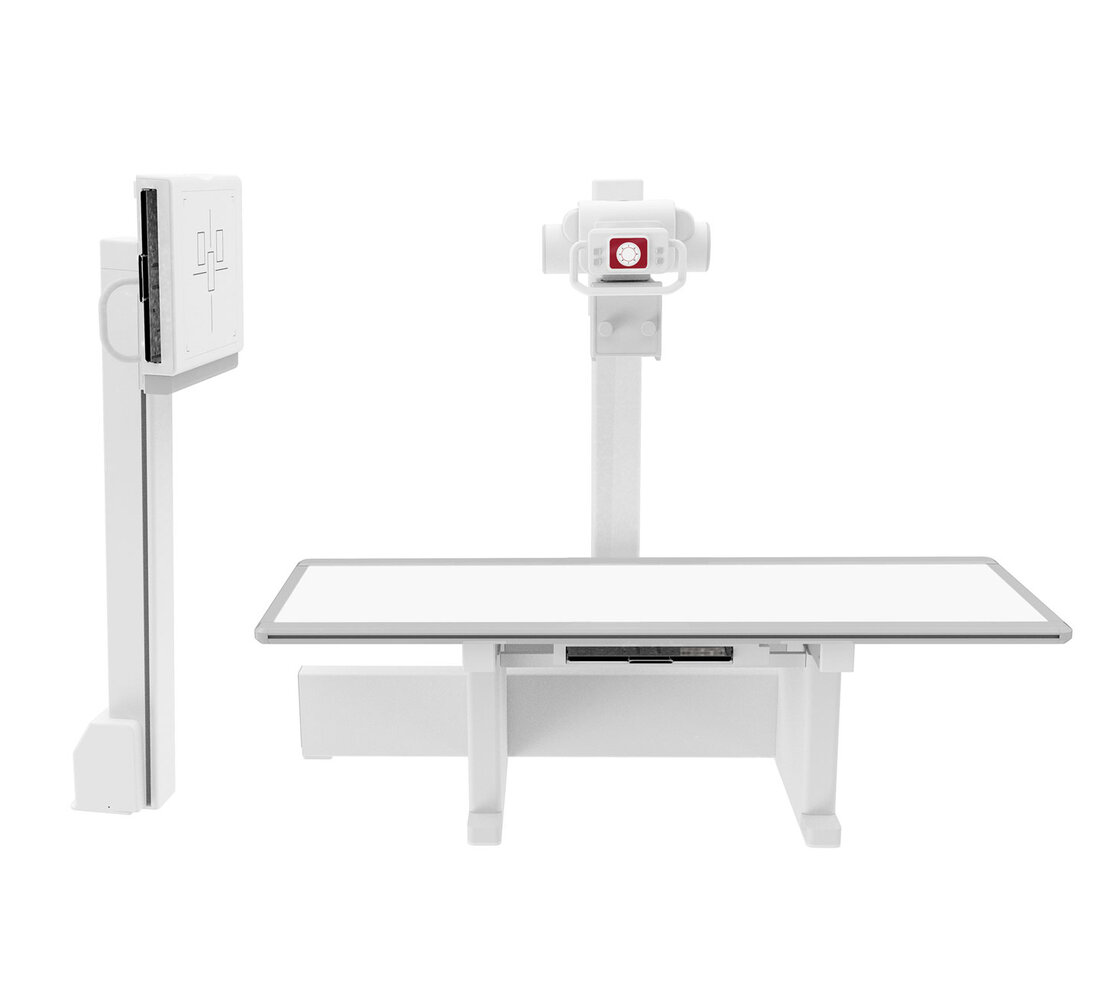

The X-DRS Floor Basic is an X-ray system composed of the classic combination of a bucky table and a wall unit. This allows you to perform a wide range of different X-ray examinations. Recumbent position and other table-top exposures can be performed on the fixed X-ray table, and images can also be acquired standing and under stress using the wall unit.
The compact X-DRS Floor Basic table/wall system is ergonomically engineered for smooth, trouble-free operation and requires relatively little space. The EXAMION X-ray system is a guarantee of comfortable, user-friendly operation for system users, with easy positioning of patients and a electromagnetic braking system. The primary focus is on basic functions to ensure the smoothest operation possible.
Combined with the EXAMION X-ray detectors and our in-house imaging software, the system produces outstanding digital radiological images. The X-ray system is operated by our X-AQS X-ray software, meaning that digital X-ray images can be acquired in the minimum amount of time, with just a few clicks.
Rent instead of buying
We are happy to offer you our X-DRS Floor Basic X-ray system at attractive rental conditions.
Powered by X-AQS EXAMION X-ray software
Our proprietary X-ray software X-AQS serves as the central control unit for digital X-rays. Clear and self-explanatory buttons guide you quickly and easily through acquisition of the perfect X-ray image.
Technical Specifications
| Longitudinal travel (tube stand) | 127.6 cm (50.3") Manual movement, electromagnetic brakes |
| Vertical travel (focal spot) | 136.5 cm (53.8") Manuel movement, electromagnetic brakes |

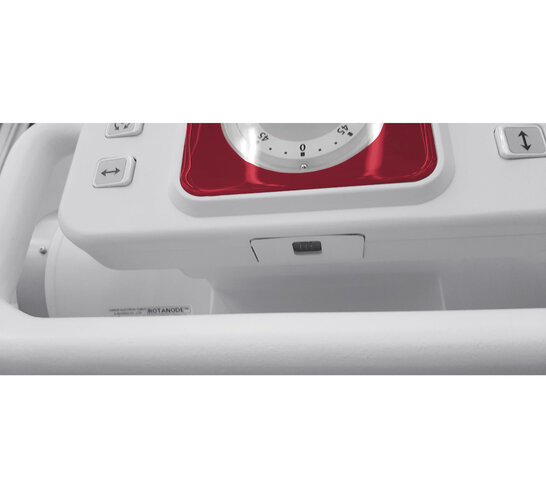

| Tube rotation | ±135° Manual rotation, electromagnetic brakes |
| Tracking | Table: Mechanical clutch between tube stand and bucky of the table |
| Vertical travel (bucky) | Min.: 40 cm (15.7") Max.: 176.5 cm (69.5") Manual movement, electromagnetic brakes |
| Bucky | For cassettes or mobile flat detectors |
| Tabletop dimensions | 228 cm x 80.6 cm (89.8" x 31.8") |
| Tabletop travel range | Longitudinal: 50 cm ± 1 cm (19.7" ± 0.4") Transverse: 8.5 cm ± 1 cm (3.4" ± 0.4") |
| Detector travel range | 33.4 cm ± 1 cm (13.2" ± 0.4") |
| Max. patient weight | 250 kg (551.2 lbs) |
| Table top brakes | Electromagnetic brakes released via foot-controlled light barrier |
| Bucky | For cassettes or mobile fl at detectors |
| Generator | CPI CMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, AEC, hand switch, 3 phases / N / PE, 400 V, incl. console Other generators on request |
| Tube | Varex RAD-14, focal spots 0.6 / 1.2 mm, 300 kHu, max. 150 kV, incl. high voltage cable, weight 17.4 kg (38.4 lbs) Optional: RAD 21, RAD 60 |
| Collimator | Manually turnable, LED lamp, integrated timer, laser alignmentg |
| AEC | 3-field measuring chamber with cable |
| DFP (optional) | DAP measuring device or DAP calculation, automatic integration into X-AQS X-ray journal |
| Warranty | 5 years warranty on detectors 1 year warranty on all other components Extended warranty on request |
| Certification | CE 2460 |
| Selectable Detectors | X-DR L WiFi | X-DR L WiFi Premium | X-DR XL WiFi | X-DR XL WiFi Premium |
| Pixel Size | 150 μm | 100 μm | 139 μm | 100 μm |
| Pixel Matrix | 2.304 px x 2.800 px | 3.500 px x 4.300 px | 3.072 px x 3.072 px | 4.267 px x 4.276 px |
| Weight | 3,4 kg | 2,8 kg | 4,6 kg | 3,4 kg |
| Protection Class | IPX1 | IP56 | IPX1 | IP56 |
| Uniform Load | 150 kg | 300 kg | 100 kg | 300 kg |
| Local Load | 100 kg (4 cm diameter) | 150 kg (4 cm diameter) | 100 kg (4 cm diameter) | 150 kg (4 cm diameter) |
| Configurations | EXAMION X-AQS DICOM Modality SCU • DICOM Worklist SCU • DICOM Store SCU |
| EXAMION X-AQS PACS • Integrated Mini-PACS |
Questions and Answers
As a PACS manufacturer, we are specialized in radiological image management. Based on our long-standing experience also in the X-ray sector, we act as a one-stop shop: from consulting to planning and implementation of the entire X-ray room and subsequent image distribution. Thus, our representatives can provide in-depth information about our digital X-ray systems and give you appropriate retrofitting advice, but they can also help you quickly and efficiently in case of a malfunction.
It depends on the individual case. Depending on the X-ray system, we are able to carry out maintenance and repairs or enable further use of X-ray equipment. This must be evaluated individually; our representatives will be happy to advise you! Send us an email at vertrieb@examion.com or contact your sales representative directly.
No, there is no obligation to conclude a software service contract when purchasing our X-AQS X-ray software. However, for a software medical device, this is specifically recommended. Our software is characterized by stable performance, but it is not an isolated system and therefore subject to changes in the operating system (e.g., Windows), device drivers, the network and, of course, users. A software maintenance contract ensures that you and your staff can always rely on support for questions and problems, without having to worry about a bill after every phone call.
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
