X-DRS Portable 100 PK
The portable X-ray machine of the X-DRS Portable 100 PK system is particularly powerful and compact, so that it can reliably support you in the full range of your activities. EXAMION offers you a compatible stand for this system for convenient working when creating digital X-ray images.
The easily operated X-ray system gives you the freedom to concentrate completely on your patient. Not only is the hardware intuitive to use, but with our X-AQS X-ray software, which forms an integral part of the system, we placed great value on user-friendliness right from the development phase. Thanks to a wide range of setting options, the system can be adapted to your individual needs.
The robust housing protects the X-ray device from impacts and dirt; this is a standard of comfort that once experienced, you will never want to do without.
Available in two versions:
- X-DRS Portable 100 PK
Fully integrated X-ray system consisting of four main components: Powerful X-ray tube, EXAMION detector in the right size/design on a selectable stand and the X-AQS X-ray software. - X-R Portable 100 PK
The portable X-ray machine has a constant X-ray output with no fluctuations in performance, so digital X-ray images can be reliably created. The X-ray tube can be optimally combined with the X-DR Portable Case/Bag L WiFi X-ray systems.
Technical Specifications
| Output power | 5.0 kW @ 75 kV |
| Tube vol./current | 110 kV / 100 mA |
| Voltage range | 40 - 110 kV (1 kV steps) |
| mAs range | 0.1 - 100 mAs (40 steps) |
| Current output range | 100 mA @ 40 - 50 kV / 0.4 - 10 mAs 80 mA @ 51 - 60 kV / 0.4 - 8 mAs 50 mA @ 40 - 50 kV / 100 mAs 50 mA @ 61 - 80 kV / 0.4 - 8 mAs 40 mA @ 51 - 60 kV / 64 - 100 mAs 40 mA @ 71 - 80 kV / 9 - 21 mAs 40 mA @ 101 - 110 kV / 0.2 - 5 mAs 30 mA @ 71 - 80 kV / 25 - 64 mAs 30 mA @ 101 - 110 kV / 6.4 - 12 mAs 20 mA @ 81 - 100 kV / 32 - 80 mAs 80 mA @ 40 - 50 kV / 12 - 32 mAs 60 mA @ 40 - 50 kV / 36 - 80 mAs 50 mA @ 51 - 60 kV / 9 - 50 mAs 40 mA @ 40 - 80 kV / 0.2 - 0.3 mAs 40 mA @ 61 - 70 kV / 9 - 50 mAs 40 mA @ 81 - 100 kV / 0.2 - 8mAs 30 mA @ 61 - 70 kV / 64 - 100 mAs 30 mA @ 81 - 100 kV / 9 - 30 mAs 20 mA @ 40 - 110 kV / 0.1 mAs 20 mA @ 101 - 110 kV / 15 - 64 mAs |
| Tube type | CEI OX 110 - 15 |
| Focal spot | 1.5 mm |
| HU capacity | 76 kHU |
| Cooling rate | 57 kWs |
| Collimator lamp | LED |
| Collimator auto timer | 30 sec. |
| SID scale lenght | 2 m |
| Input power | 100 - 240 VAC (Free voltage) |
| Power frequency / phase | 50 / 60 Hz, single phase |
| PROM memory | 750 APR |

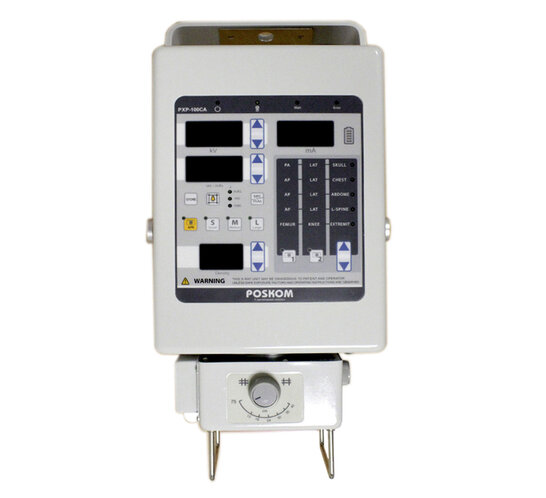

| Control panel | 7-segment LED read-out reversible Hand switch remote control function Digital LED display: mAs & KV Remote control software & PROM Programmable pre - set technique Data storage & store button LED indicator: ready & exp. Wait |
| Weight | 19.6 kg |
| Dimensions Tube (W x H x L) | 254 x 225 x 423 mm |
| Included accessories | Aluminum transport case |
| Warranty | 12-month warranty |
| Selectable Detectors | X-DR L WiFi | X-DR L WiFi Premium |
| Pixel Size | 150 μm | 100 μm |
| Pixel Matrix | 2304 x 2800 | 3500 x 4300 |
| Weight | 3.4 kg | 2.8 kg |
| Protection Class | IPX1 | IP56 |
| Uniform Load | 150 kg | 300 kg |
| Local Load | 100 kg (4 cm diameter) | 150 kg (4 cm diameter) |
| Configurations | EXAMION X-AQS DICOM Modality SCU • DICOM Worklist SCU • DICOM Store SCU EXAMION X-AQS PACS • Integrated Mini-PACS |
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
