X-DR Portable Case L WiFi

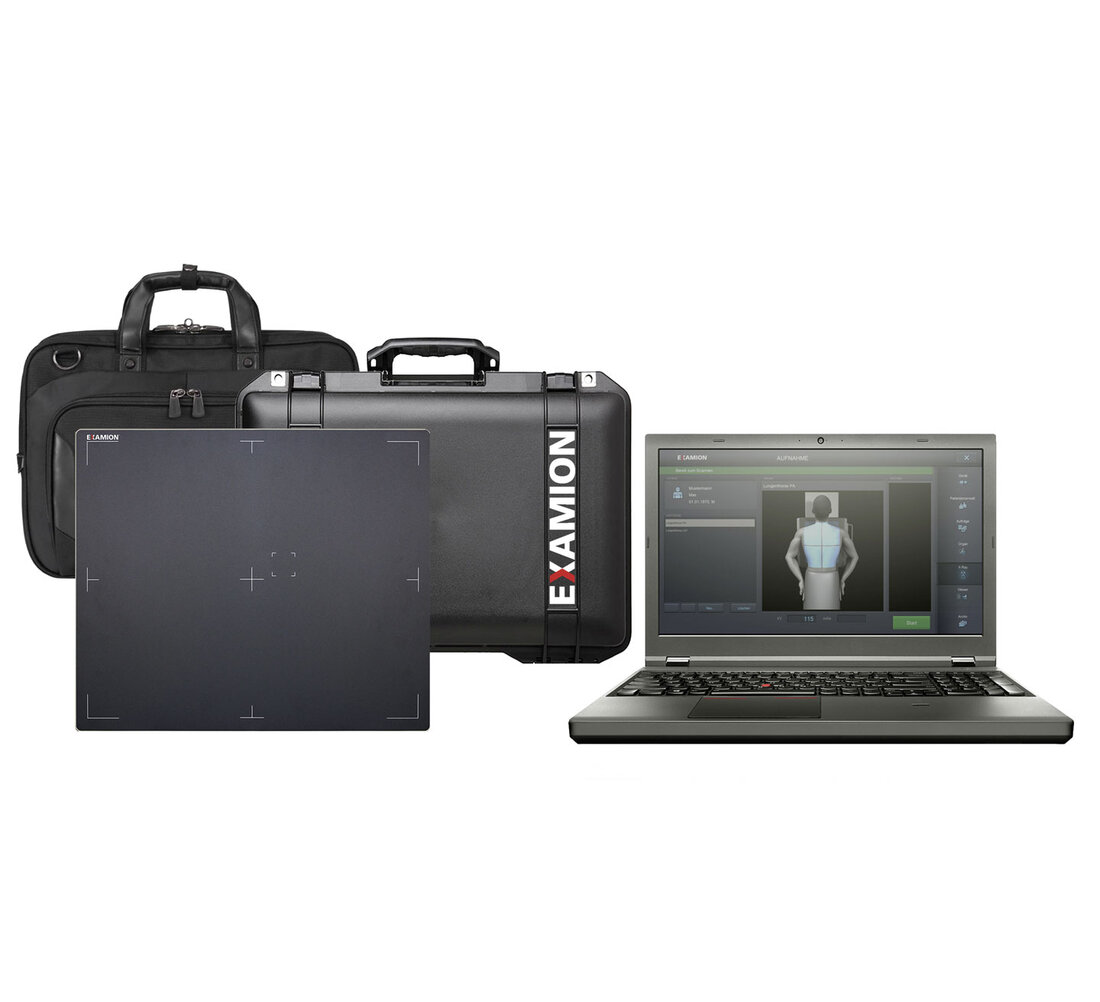

Produktbild des X-DR Portable Case L WiFi von EXAMION

Product images

Technical data

Detector X-DR L WiFi
Detection method
Indirect conversion, a-Si TFT
Scintillator
CsI
Dimensions (W x H x D)
460 mm x 384 mm x 15.2 mm (18.1“ x 15.1“ x 0.6“)
Weight
3.7 kg (8.2 lbs)
Pixel matrix
2,304 x 2,800 pixel
Pixel pitch
150 µm
Active area
35 cm x 42 cm (14" x 17")
A/D conversion
14 bits
Spatial resolution
min. 4.0 lp/mm
Image transfer time
5 s
Power consumption
max. 12 W
Synchronisation
AED (Automatic Exposure Detection) / external trigger
Housing material
Magnesium aluminum alloy
Weight limit
Local load: 100 kg at Ø 40 mm
Uniform load: 100 kg at effective image area overall
Enviromental conditions
Operating

Temperature: 5 °C to 40 °C (41 °F to 104 °F)
Humidity: 20 % to 85 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa

Transport / Storage
Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
Humidity: 5 % to 95 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa

Battery
Type: Lithium Polymer
Charging time: 2 hours
Working time (with one battery): 4 hours @ 200 images
Life: min. 1000 charging cycles

Regulatory requirements and standards
CE 2460
Capture console, consisting of
X-HW More Acquisition Notebook, X-AQS PACS software (controls detector, image acquisition and optimization), X-AQS Module Horsemode, X-AQS Module Dropbox Cloud
Transport Solution

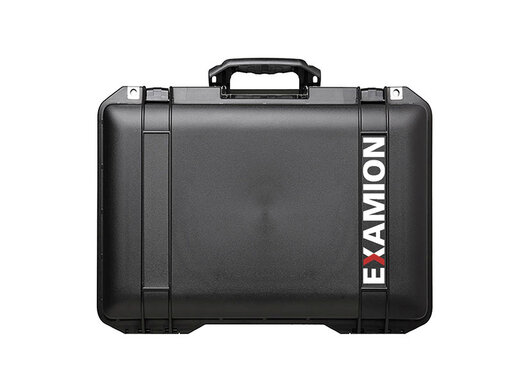

High-tech carrying case
Dimensions (L x W x D): 590 mm x 525 mm x 225 mm (23.2“ x 20.7“ x 8.9“)
Total weight (fully equipped): < 18 kg (40 lbs)
Material: Lightweight strong HPX@ Resin, watertight, dustproof
Feature equipment
Battery charger for detector with 2 batteries
Cowboy box for detector and distance holder
EXAMION® starter kit and backup solution
Warranty
12-month warranty, extended warranty on request

You can download the technical data sheet of the X-DR Portable Case L WiFi as a PDF file here.

Do you need more information about our products and services?

The actual product configuration depends on the selected product variant and may differ from country to country. The products and product features shown in illustrations may differ in individual details from the current product range. Changes serving technical progress and errors excepted.
