X-DRS Mobile Pro 320

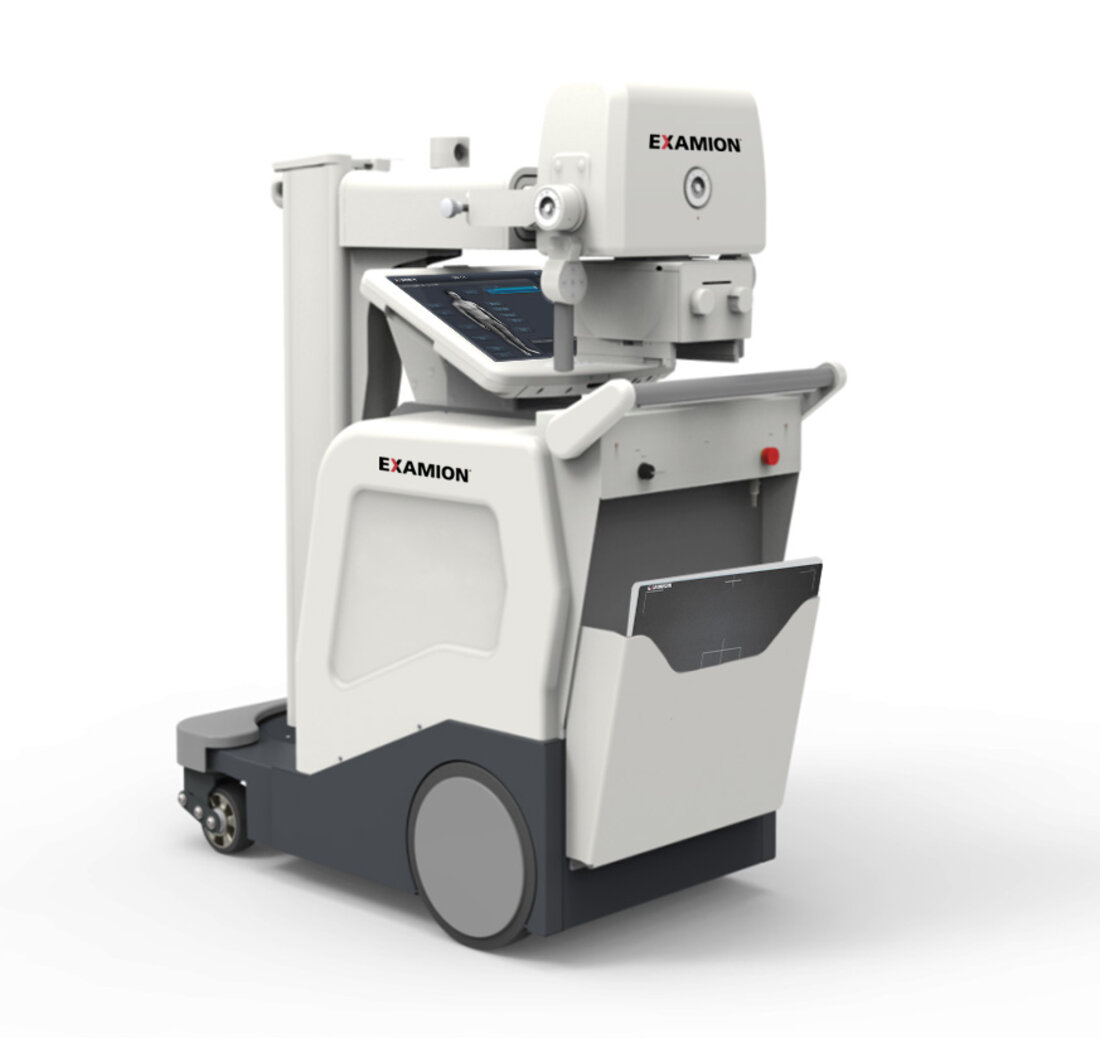

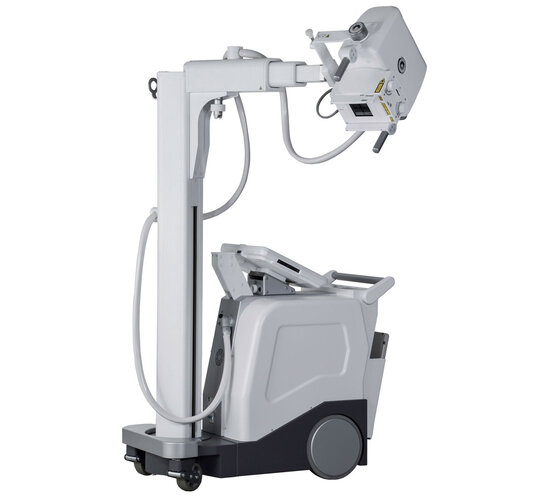

Produktbild des X-DR Mobile Pro 320 von EXAMION

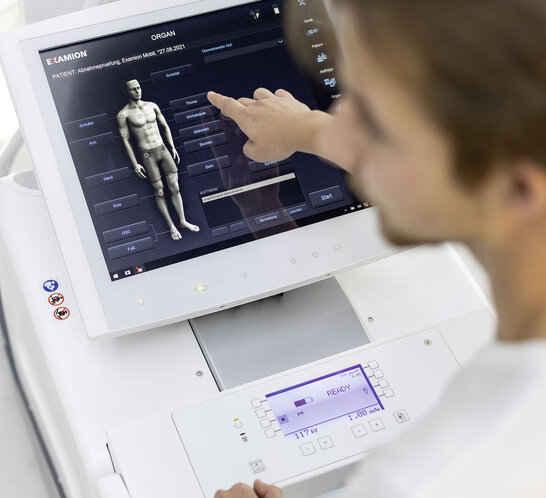

Product images

Technical data

Electrical Specifications
Mains connection
115 V / 230 V ±10% -  50/60 Hz ± 5 Hz, standard monophase with ground conductor.
Absorbed current
10 A
Line compensation
Automatic
Line resistance
<1 Ω @ 115/230 Vac
Standard socket
16 A @ 230 Vac
Power supply cable
2.9 m, retractable
Mechanical Specifications
W x L x H (in transport position)
576 mm x 1168 mm x 1855 mm
Transport handle height
900 mm
Focus-ground distance (Z-axis)
726 mm ÷ 2013 mm
Max. height
2242 mm
Arm extension (X-axis)
360 mm
Front range
710 ÷ 1070 mm
Lateral range
517÷ 877 mm
Rotation of the monobloc
around the arm axis (α swivel): ± 180°
around the column axis (β swivel): ± 320° from transport position
around its axis (γ swivel): 127° (90° forward, 37° backward)
Movement
Motorized, speed proportional to the force impressed on the transport handle.
Speed forward (transport position)
0 ÷ 1,4 m/s
Speed forward in working position
0 ÷ 0,7 m/s
Speed backwards
0 ÷ 0,7 m/s
Max. superable inclination
12° (21%)
Diameter of the wheels
Front: 125 mm, antistatic,damped
Rear: 300 mm, antistatic
Weight
397 kg, batteries included
Environmental Conditions
Operating

Temperature: 10 °C to 40 °C (50 °F to 104 °F)
Humidity: 30 % to 75 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa

Transport / Storage
Temperature: -25 °C to 70 °C (-4 °F to 122 °F)
Humidity: 10 % to 90 % (non-condensing)
Atmospheric pressure: 500 hPa to 1060 hPa
Batteries
Battery type
VRLA (Valve regulated lead acid batteries)
Battery pack
12 batteries x 12 V, 18 Ah, Pb, 144 Vdc
Vacuum nominal voltage
144 Vdc
Load voltage (worst case)
100 V @200 A
