X-DR Portable Case L WiFi

Technical data

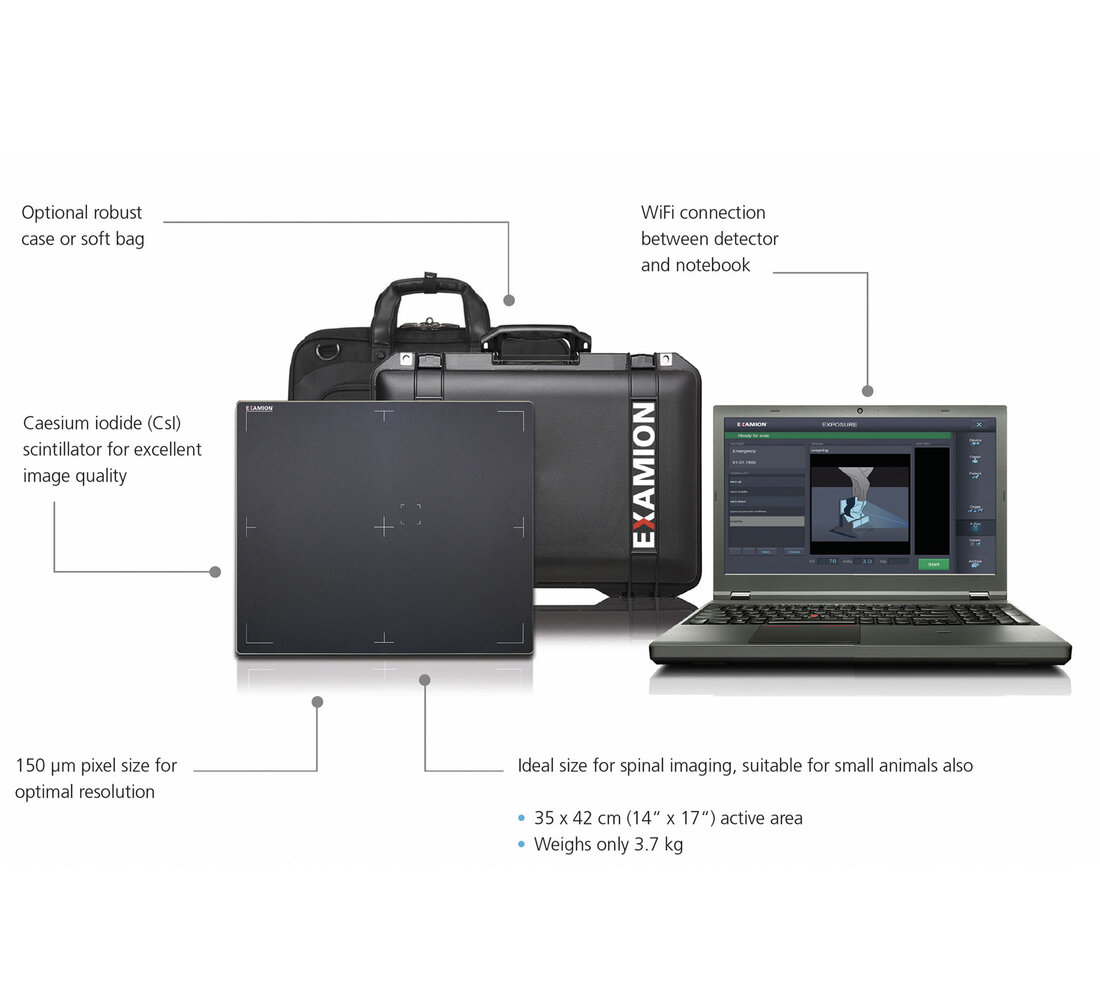

Detector X-DR L WiFi
Detection method
Indirect conversion, a-Si TFT
Indirect conversion, a-Si TFT
Scintillator
CsI
CsI
Dimensions (W x H x D)
460 mm x 384 mm x 15.2 mm (18.1“ x 15.1“ x 0.6“)
460 mm x 384 mm x 15.2 mm (18.1“ x 15.1“ x 0.6“)
Weight
3.7 kg (8.2 lbs)
3.7 kg (8.2 lbs)
Pixel matrix
2,304 x 2,800 pixel
2,304 x 2,800 pixel
Pixel pitch
150 µm
150 µm
Active area
35 cm x 42 cm (14" x 17")
35 cm x 42 cm (14" x 17")
A/D conversion
14 bits
14 bits
Spatial resolution
min. 4.0 lp/mm
min. 4.0 lp/mm
Image transfer time
5 s
5 s
Power consumption
max. 12 W
max. 12 W
Synchronisation
AED (Automatic Exposure Detection) / external trigger
AED (Automatic Exposure Detection) / external trigger
Housing material
Magnesium aluminum alloy
Magnesium aluminum alloy
Weight limit
Local load: 100 kg at Ø 40 mm
Uniform load: 100 kg at effective image area overall
Local load: 100 kg at Ø 40 mm
Uniform load: 100 kg at effective image area overall
Enviromental conditions
Operating
Temperature: 5 °C to 40 °C (41 °F to 104 °F)
Humidity: 20 % to 85 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Transport / Storage
Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
Humidity: 5 % to 95 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Operating
Temperature: 5 °C to 40 °C (41 °F to 104 °F)
Humidity: 20 % to 85 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Transport / Storage
Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
Humidity: 5 % to 95 % (non-condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Battery
Type: Lithium Polymer
Charging time: 2 hours
Working time (with one battery): 4 hours @ 200 images
Life: min. 1000 charging cycles
Regulatory requirements and standards
CE 2460
CE 2460
Capture console, consisting of
X-HW More Acquisition Notebook, X-AQS PACS software (controls detector, image acquisition and optimization), X-AQS Module Horsemode, X-AQS Module Dropbox Cloud
X-HW More Acquisition Notebook, X-AQS PACS software (controls detector, image acquisition and optimization), X-AQS Module Horsemode, X-AQS Module Dropbox Cloud

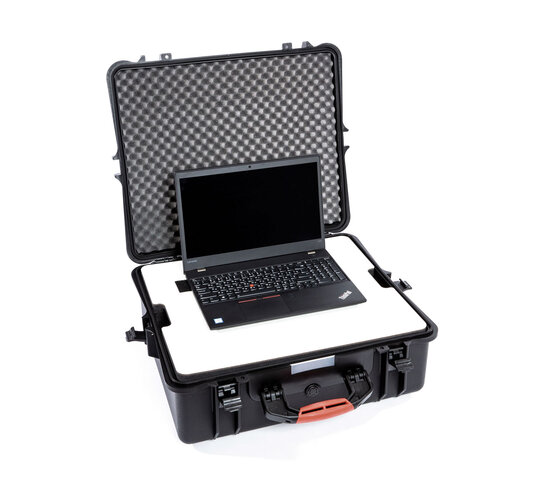

Transport Solution
High-tech carrying case
Dimensions (L x W x D): 590 mm x 525 mm x 225 mm (23.2“ x 20.7“ x 8.9“)
Total weight (fully equipped): < 18 kg (40 lbs)
Material: Lightweight strong HPX@ Resin, watertight, dustproof
Dimensions (L x W x D): 590 mm x 525 mm x 225 mm (23.2“ x 20.7“ x 8.9“)
Total weight (fully equipped): < 18 kg (40 lbs)
Material: Lightweight strong HPX@ Resin, watertight, dustproof
Feature equipment
Battery charger for detector with 2 batteries
Cowboy box for detector and distance holder
EXAMION® starter kit and backup solution
Battery charger for detector with 2 batteries
Cowboy box for detector and distance holder
EXAMION® starter kit and backup solution
Warranty
12-month warranty
12-month warranty
You can download the technical data sheet of the X-DR Portable Case L WiFi as a PDF file here.
