X-DR Portable Case M WiFi DT

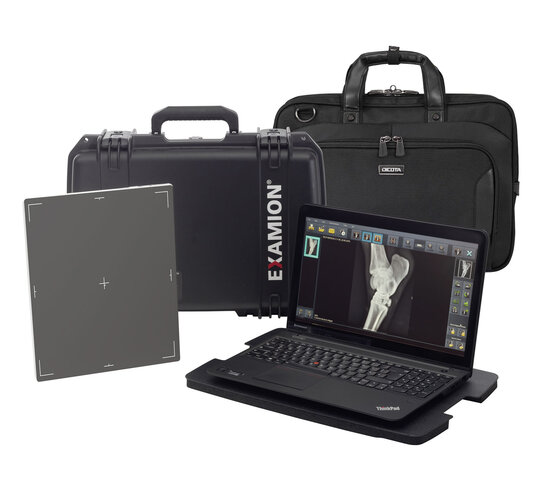

Produktbild des X-DR Portable Case M WiFi DT von EXAMION

Product images

Technical data

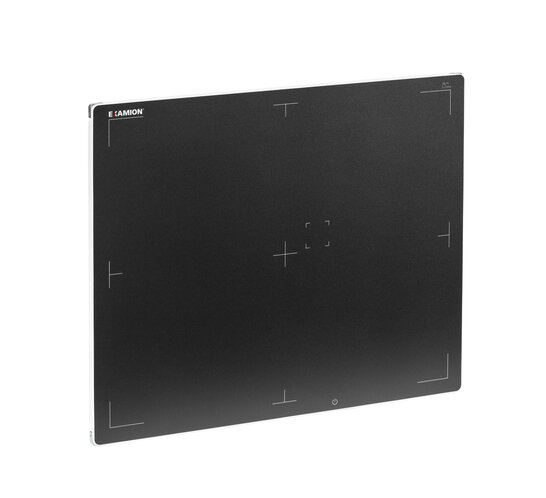

Detector X-DR M WiFi DT
Detection method
Indirect conversion, a-Si TFT
Scintillator
CsI
External dimensions (W x H x D)
327 mm × 268 mm × 16 mm (12.9“ x 10.6“ x 0.6“)
Weight
1.9 kg (4.2 lbs)
Pixel matrix
3,072 x 3,840 pixel
Pixel pitch
76 µm
Active area
233.47 x 291.84 mm (9.2" x 11.5")
A/D conversion
16 bits
Spatial resolution
min. 6.52 lp/mm
Cycle time
HT Mode: 7 s
HR Mode: 9 s
Synchronisation
AED (Automatic Exposure Detection)
Housing material
Unibody aluminium structure plus high quality polymers
Weight limit
Local load: 100 kg at Ø 40 mm
Uniform load: 170 kg at effective image area overall
Water resistant
IPX4
Enviromental conditions
Operating

Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 30 % to 85 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa

Transport / Storage (unpacked)
Temperature: -10 °C to 40 °C (14 °F to 104 °F)
Humidity: 10 % to 90 % (non condensing)
Atmospheric pressure: 500 hPa to 1060 hPa
Battery
Type: Li-ion Polymer
Charging time: 3 hours Life: 3.5 hours by full acquisition; approx. 630 images (Fully charged / Discharged completely, 1 cycle)
Capture console, consisting of
X-HW More Acquisition Notebook, X-AQS PACS software (controls detector, image acquisition and optimization).
High-tech carrying case
Dimensions (L x W x D)
508 mm x 373 mm x 147 mm (20" x 14.7" x 5.8")
Total weight (fully equipped)
< 11 kg (24.3 lbs)
Material
Lightweight strong HPX@ Resin, watertight, dustproof

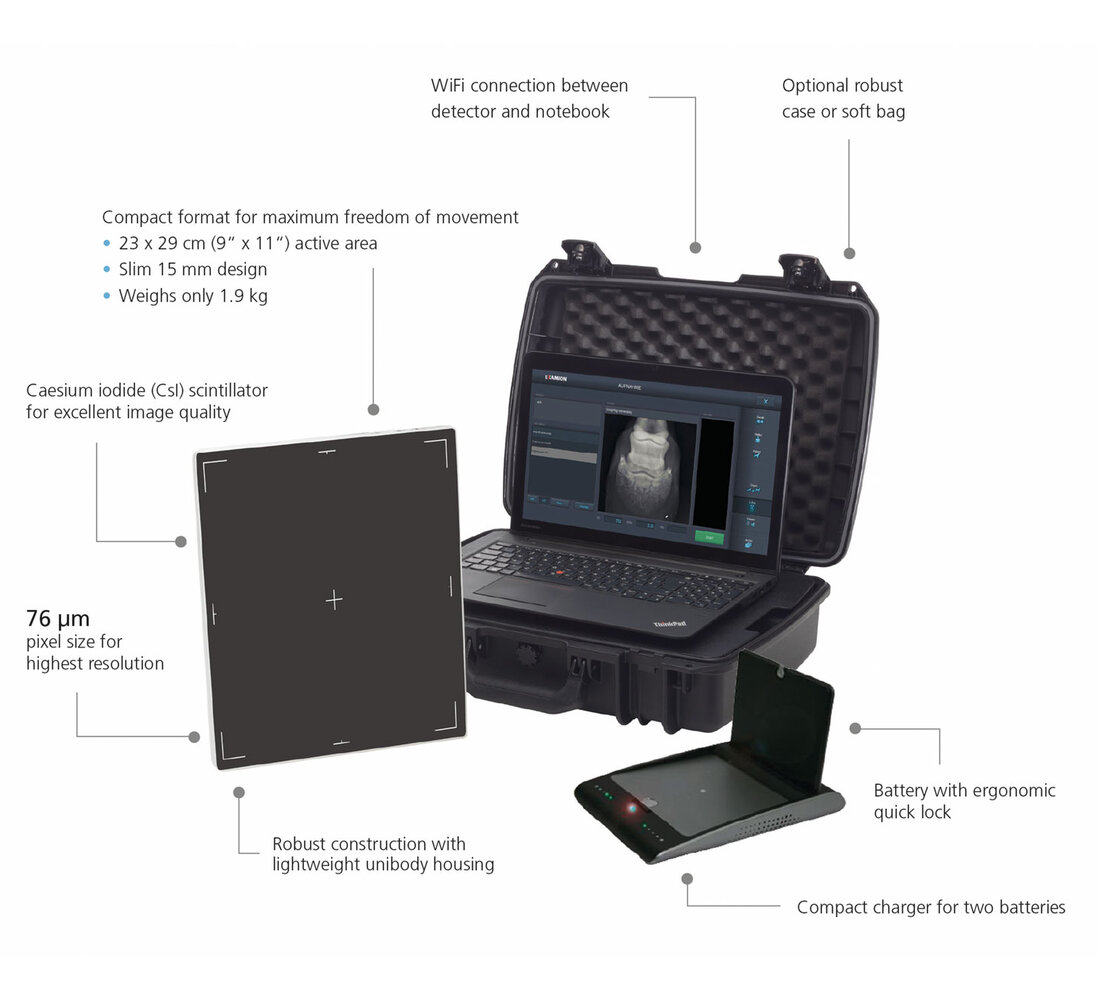

Feature equipment
Battery charger for detector with 2 batteries
Cowboy box for detector and distance holder
EXAMION® starter kit and backup solution
Warranty
12-month warranty, extended warranty on request

You can download the technical data sheet of the X-DR Portable Case M WiFi DT as a PDF file here.
