Digital radiography for the equine veterinary practice with X-DRS Ceiling

Ceiling-mounted complete X-ray system

Stationary X-ray system for the equine clinic

The ceiling-mounted X-ray system X-DRS Ceiling is a versatile system developed specifically for the requirements of the equine veterinary practice. The stationary X-ray system with one or two telescopic arms delivers high-quality images and impresses users with the latest technology and maximum user comfort.
In designing this innovative X-ray system, the focus was clearly on the well-being of the animal. Noise generation has thus been minimised, ensuring that the examinations are as pleasant as possible for the animal.

X-DRS Ceiling can be combined with all EXAMION detectors.

Product image with descriptions of the EXAMION X-DRS Ceiling for the equine clinic

The large working area of the X-DRS Ceiling gives the animal, the veterinarian and all other participants more freedom of movement and thus greater safety during digital X-raying.

Setting up the X-ray field with X-DRS Ceiling from EXAMION
Positioning of the horse at the X-DRS Ceiling

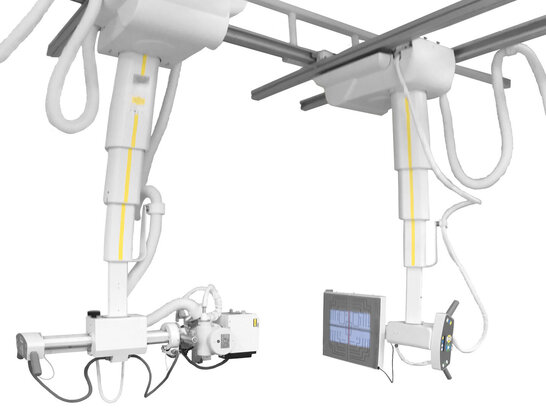

Ceiling mounting with control section of the X-DRS Ceiling

Wide range of X-rays

Thanks to the high mobility of the X-ray system, an extremely wide range of X-rays is possible: Patient images at a height of up to 210 cm and also foot images.

  • Vertical mobility 180 cm height; optionally also 193 cm high
  • Floor clearance from 7 to 13 cm
  • Working area of 430 x 460 cm
  • X-ray tube telescopic arm with 32 cm horizontal mobility
Product example of X-DRS Ceiling with horse gate
Application example of X-ray with the X-DRS Ceiling from EXAMION

Intuitive control software for digital radiography

Ceiling mounting with X-DRS Ceiling control

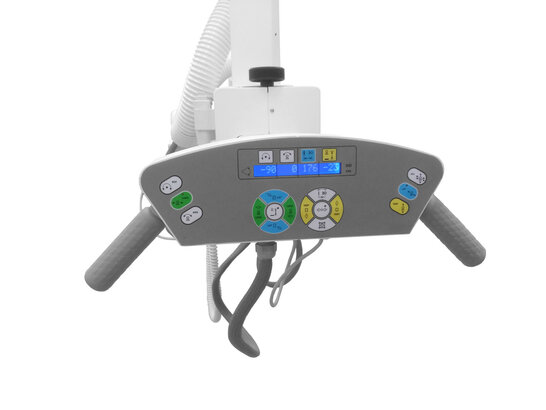

X-DRS Ceiling Control Console
  • Combined control of X-ray generator and detector
  • Horse-specific organ programs
  • State-of-the-art image processing
  • Express buttons for pre-purchase examinations
  • Simple image viewing using the radiological viewer with diagnostic tools and measurement functions

Equipment options of the X-ray system for the equine veterinary practice

X-DRS Ceiling One – one teslescopic arm

  • The entry-level gantry for your advanced equine X-raying
  • The most powerful equine X-ray system at your fingertips
  • All power required to reproduce crispy images with shortest exposures
  • All challenging abdominal, hip and thoracic equine radiographic procedures within easy reach
  • The dual up-close and remote telescopic tube stand controls allow for best safety of horse, radiologists and veterinary technicians
  • Minimal force to be exerted when positioning the X-ray tube

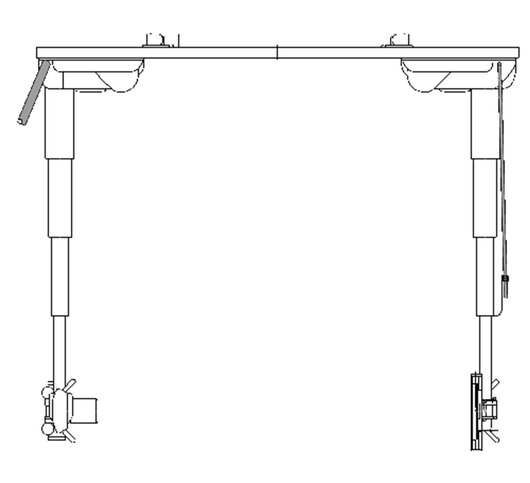

Sketch of the X-DRS Ceiling Two with two telescopic arms

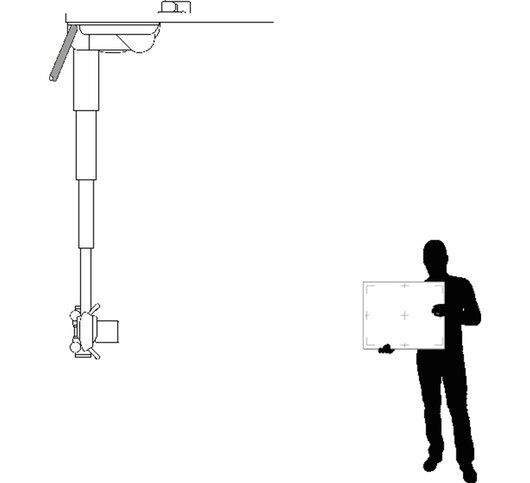

Sketch of the X-DRS Ceiling One with one telescopic arm

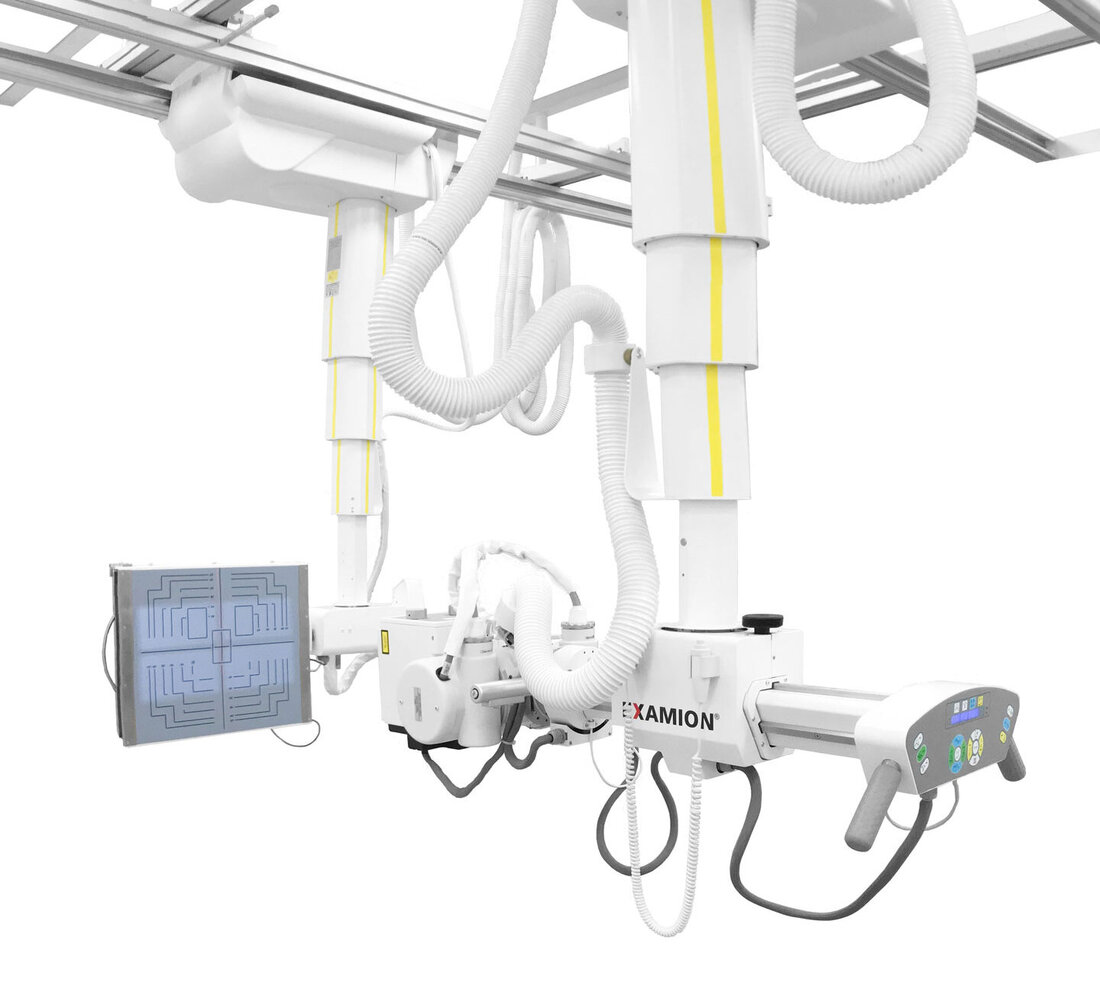

X-DRS Ceiling Two – two telescopic arms

  • The telescopic tube stand, supplemented by its twinned bucky stand upgrades to the equine most versatile and optimised X-ray solution
  • Automatic synchronisation between tube and bucky stand for a perfect tube-panel alignment every time
  • Secure Bucky tray providing maximum detector protection.
  • Integrated anti-scatter grid assuring the highest image quality
  • Automatic exposure control (AEC) for consistent dose ­
    and exposures
  • Dual telescopic tube stand controls (up-close and remote) for best safety of horse, radiologists and veterinary technicians
Do you need more information about our products and services?
The actual product configuration depends on the selected product variant and may differ from country to country. The products and product features shown in illustrations may differ in individual details from the current product range. Changes serving technical progress and errors excepted.
